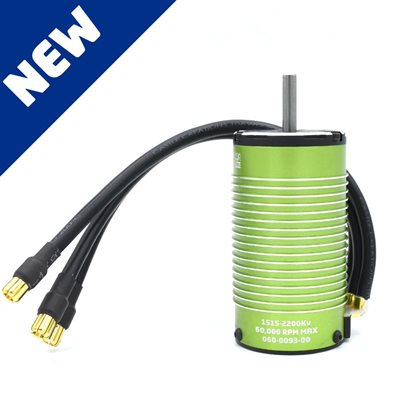

CASTLE CREATIONS 4-POLE SENSORED BRUSHLESS, 1515-2200KV V2
CASTLE CREATIONS 4-POLE SENSORED BRUSHLESS, 1515-2200KV V2
Couldn't load pickup availability
CASTLE CREATIONS 4-POLE SENSORED BRUSHLESS, 1515-2200KV V2 # 060-0093-00
Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products is meticulously designed to provide the utmost satisfaction. Let’s face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we have ever produced! The rotor and stator have been completely redesigned to improve magnetic flux. This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times!
Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.
Product #: 060-0093-00
Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products is meticulously designed to provide the utmost satisfaction. Let’s face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we have ever produced! The rotor and stator have been completely redesigned to improve magnetic flux. This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times!
Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.
1515-2200Kv V2 FEATURES:
| Technical Specs | |
|---|---|
| Input Voltage Range: | 2S-6S LiPo |
| Kv: | 2200 |
| Max. RPM: | 60,000 |
| Size: | Length: 75.4mm Diameter: 40mm (41.4mm with fins) |
| Weight (w/wires): | 426g (15.1oz) ; 380g without wires |
| Shaft Size: | Length: 20mm Diameter: 5mm |
| Mounting Hole Specifications: | M3 and M4 @ 25mm |
| Cooling Fan: | |
| Connectors: | 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire. |
| Items Needed for Operation: | Compatible Electronic Speed Control (ESC) |
| Application Guidelines: | Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs. Not recommended for use in high speed 1/8th and larger applications (IE Arrma Infraction and Limitless, Traxxas XO-1) |
| Recommended ESC(s): | Monster X ESC, Mamba X ESC, Sidewinder 8 |
| Max. Recommended Vehicle Weight: | See application guidelines |
| Tech Notes: | Running modes: SMARTSENSE™, Sensored (with Sensored capable ESC), Sensorless
Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments. |
| Comparable Turn Count: | |
| Resources |
|---|
| Sensored Motor Quick Start |
*Software downloadable at no cost from www.castlecreations.com/downloads, and requires a Castle Link USB adapter and USB enabled Windows™ PC.
Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
Motor designed in Olathe, Kansas USA.
Motor made in China.
